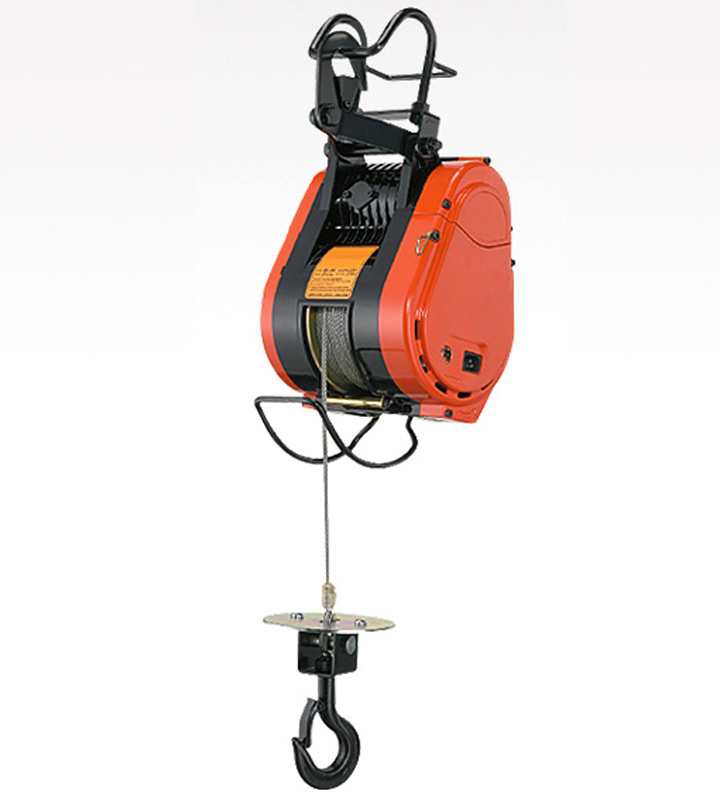

ME series
Features:
- Light weight & compact design allows mounting convenient.
- Equipped with magnetic contactor to avoid voltage drop, while ensuring powerful lifting.
- When rope touches the limit arm, hoisting is automatically stopped.
- A sensor arm stops the motor when the rope is reverse winding.
- Dynamic brake designs for both static and dynamic loading.
- Separated quick connection for convenience.
- 360° universal joint saddle hook with safety latch
- Emergency stop function switch is available upon request

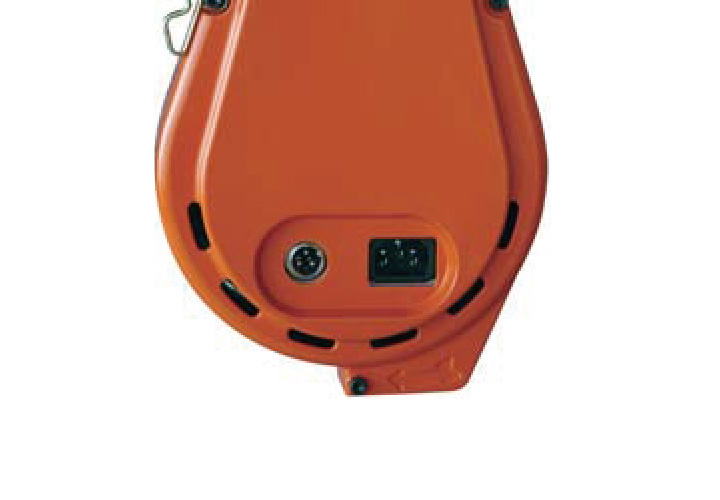

ME Type Receptacle

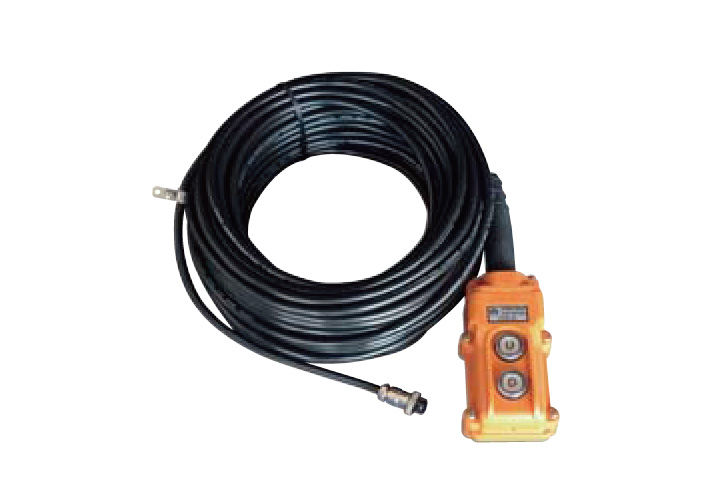

Hoist Water Proof Push Button Pendant Switch

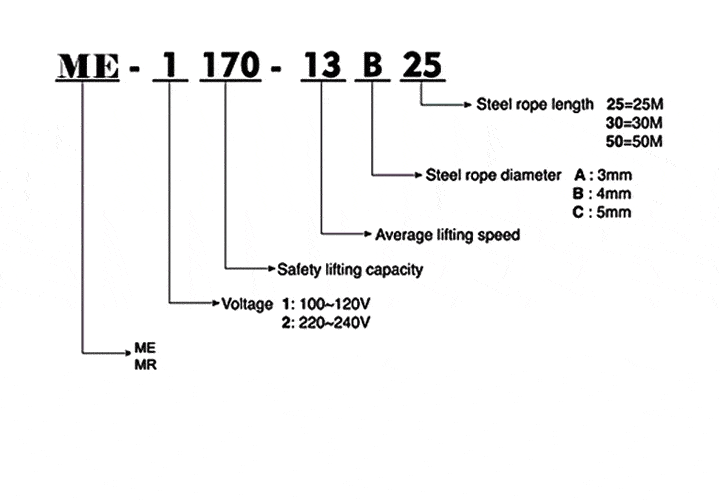

| Model | ME-2085-28A50 | ME-2170-21B30 | ME-2200-21C30 | ME-2230-15C30 | ME-2260-15C30 | ME-2300-13C30 | ME-2360-21D40 | ME-2500-13E30 |
|---|---|---|---|---|---|---|---|---|
| Rated Lifting capacity |
85kg | 170kg | 200kg | 230kg | 260kg | 300kg | 360kg | 500kg |
| Speed | 28M/min | 21M/min | 21M/min | 15M/min | 15M/min | 13M/min | 21M/min | 13M/min |
| Power consumption |
1000W | 1200W | 1300W | 1200W | 1300W | 1500W | 2000W | 2000W |
| Power source (Single phase) |
1PH 220V, 50/60Hz | |||||||
| Rated power source |
5A | 6A | 7A | 6A | 7A | 7.5A | 9A | 9A |
| Rated reciprocation |
30% ED, 150 time/hour | 30% ED, 150 time/hour | ||||||
| Packing (LxWxH) |
427X245X345mm | 520X300X400mm | ||||||
| N.W. (kg) | 19 | 36 | ||||||
| G.W. (kg) | 20 | 38 | ||||||
| Accessories | ||||||||
| Steel rope | Ø3mmx50M | Ø4mmx30M | Ø5mmx30M | Ø5mmx30M | Ø5mmx30M | Ø5mmx30M | Ø6mmx40M | Ø7mmx30M |
| Weight hook | MH-100 | |||||||
| Power Wire | 5M | |||||||
| Operational cable | 10M | |||||||
| Control switch | 2-button switch | |||||||
Voltage:1PH 110V avaiable
